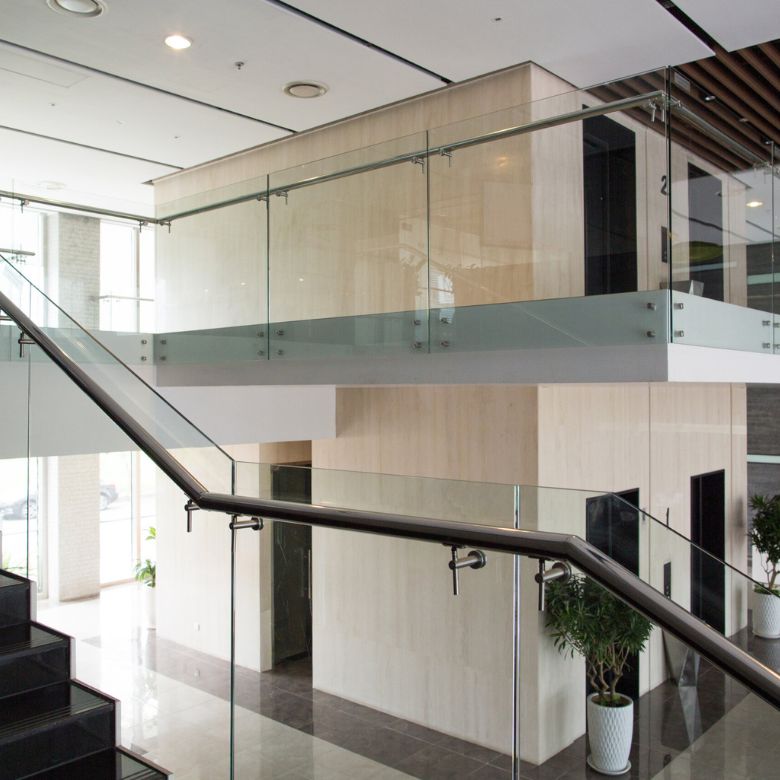

Stylish Glass Railing Designs to Enhance the Modern Look of Your Home

Glass railings are a modern architectural feature that combines transparency, durability, and safety in indoor and outdoor spaces. They are available in various design styles – including frameless, curved, backlit, and metal-inlay options. Glass railings’ prices range from ₹150 to ₹600 per sq ft; and they offer flexibility for a wide range of residential and commercial applications.

You are standing on the first-floor balcony of your new home. The view is perfect, but the contractor quips ‘glass railing’, and you freeze. Glass? Won’t that break? What if kids are around? Isn’t that expensive?

Most of us are used to steel grills or solid walls – things that look strong, feel heavy, and leave no doubt about safety. Glass, on the other hand, feels risky. It sounds delicate, unfamiliar, and expensive. But here is the truth: modern glass railings are engineered for strength, safety, and durability – and no, they do not always come with a hefty price tag.

A Design Revolution is Here

This blog breaks down the 7 types of glass railing designs, inspirations, and what you are actually paying for – so you can choose with clarity, not guesswork.

1. Zigzag-Profile

Each panel is precision-cut and set at alternating angles. Together, they create a sculptural composition that catches and refracts light at varying intensities throughout the day. This glass handrail works best on statement staircases, mezzanine overlooks, or double-height foyers.

Alignments

• Glass Height: 1050mm (standard)

• Glass Thickness: 12mm toughened or laminated glass

• Zigzag Panel Offset: 100mm-150mm per shift

• Fixing Method: Bracketed side mount or recessed U-channel with angular profiling

• Handrail: Optional; flat stainless steel or concealed groove rail

2. Backlit Floating

This design integrates concealed LED channels, either within the flooring or along the underside of the handrail. The backlit floating glass rail glows subtly along its edges, and when paired with low-iron, ultra-clear tempered glass, it creates a striking visual effect. This glass stair railing style is commonly used in indoor staircases, duplex cut-outs, and private lounge galleries.

Alignments

• Glass Height: 1000-1100mm

• Glass Thickness: 10-12mm low-iron toughened glass

• LED Channel Depth: 30-40mm embedded in handrail or flooring cavity

• Fixing Method: Fully recessed aluminium base shoe or floor-integrated U-track

• Handrail: Optional; integrated lighting rail or frameless glass edge with top-mounted LED strip

3. Curved Glass Spiral Railing

This design features custom, heat-bent glass panels – shaped to match the exact curvature of a spiral staircase, eliminating the need for segmented joints or vertical posts. This glass guardrail provides structural clarity and visual continuity – making it ideal for homes with open central stairwells, atriums, or grand double-height entries.

Alignments

• Glass Height: 1000mm (minimum)

• Glass Thickness: 12mm toughened or 10+10mm laminated curved glass

• Radius of Curve: Custom; usually R900mm to R1500mm, based on staircase geometry

• Fixing Method: Continuous recessed base channel, with radial anchors or custom-curved clamping systems

• Handrail: Optional; curved timber, stainless steel, or bronze cap fitted to match the exact arc

4. Railing with Perforated Metal Inlays

This design sandwiches decorative metal inserts – such as oxidised brass mesh, laser-cut patterns, or brushed aluminium grills – between two sheets of laminated glass. The interplay of light through the perforations creates a dynamic effect, especially when the light source changes throughout the day. This glass balcony railing is also used in mezzanine corridors, internal atriums, or terrace edges.

Alignments

• Glass Height: 1000-1050mm

• Glass Thickness: 5+5mm or 6+6mm laminated safety glass with embedded inlay

• Inlay Depth: 1-3mm decorative metal sheet, depending on pattern and finish

• Fixing Method: Aluminium or stainless-steel base shoe, with laminated insert groove

• Handrail: Recommended; slim metal or wooden rail to frame the design and protect glass edges

5. Ombre Gradient

The panels feature a fading effect, applied through etching, printing, or film. These glass balcony railings transition from frosted at the bottom to clear at the top, for privacy and openness. The Ombre design is used in balcony edges, yoga decks, or terraces in homes that face neighbouring buildings or require partial screening.

Alignments

• Glass Height: 1050mm (standard)

• Glass Thickness: 10-12mm toughened or laminated glass

• Gradient Application: Acid-etched, printed film, or ceramic frit – starting from 0% to 100% opacity, over 400-500mm height

• Fixing Method: Floor-mounted U-channel or base shoe, with optional edge polishing

• Handrail: Optional; minimal top cap in stainless steel or matching colour-coated metal

6. Minimalist Cable-guided

Instead of bulky posts or heavy frames, this system relies on vertical stainless-steel tension cables spaced strategically along the glass panels. These cables stabilise the railing, while maintaining maximum transparency. This glass guardrail style is particularly effective in rooftop edges, wraparound balconies, or cantilevered decks where panoramic views are a key design feature.

 Alignments

• Glass Height: 1050-1100mm

• Glass Thickness: 12mm low-iron toughened glass

• Cable Spacing: 150-200mm centre-to-centre using marine-grade stainless steel cables

• Fixing Method: Top or side-mounted linear base channel + upper glass handrail with tension lock anchors

• Handrail: Required; continuous steel or aluminium handrail to anchor cable ends and reinforce structure

7. Embedded Botanical Railing

Within the laminated glass panels are preserved organic elements – such as moss, pressed ferns, eucalyptus leaves, or floral fragments – arranged to resemble delicate botanical art. These materials are vacuum-sealed between 2 glass layers, creating a railing that feels both natural and sculptural. This glass stair railing is ideal for spa-like interiors, staircases near garden courtyards, or quiet reading corners.

Alignments

• Glass Height: 1000-1050mm

• Glass Thickness: 5+5 mm or 6+6 mm laminated safety glass with botanical core

• Botanical Layer Depth: 1-2mm, using UV-stabilised and moisture-sealed organic inserts

• Fixing Method: Standard laminated glass-compatible base shoe or side channel system

• Handrail: Optional; fine timber or matte black metal capping to frame the design gently

Conclusion

Now that you know how glass is not just about looks – but also about strength, safety, and smarter design – you have got a clearer picture of what glass railings bring to the balcony.  But if your mind is still wandering back to steel railings, that is completely valid. Check out this blog on steel railing designs to see how they compare, because the right choice is the one that fits your space, budget, and peace of mind.

FAQs

1. How do glass railings compare to traditional railing materials in terms of safety?

In terms of safety, compared to traditional railing materials, glass railings use toughened or laminated safety glass to withstand impact and pressure. When properly installed, they meet the same or higher safety standards as traditional railing materials.

2. Are glass railings suitable for both indoor and outdoor applications?

Yes, glass railings are suitable for both indoor and outdoor applications, when the correct glass type and weather-resistant fittings are used.

3. What are the cost considerations while choosing glass railings?

Cost considerations while choosing glass railings depend on the glass type, thickness, installation method, and hardware used.

4. What are the building code requirements for installing glass railings?

The building code requirements for installing glass railings are: minimum height of 1000-1100mm, safety glass compliant with IS 2553 or similar standards, proper edge protection, and secure anchoring systems.
